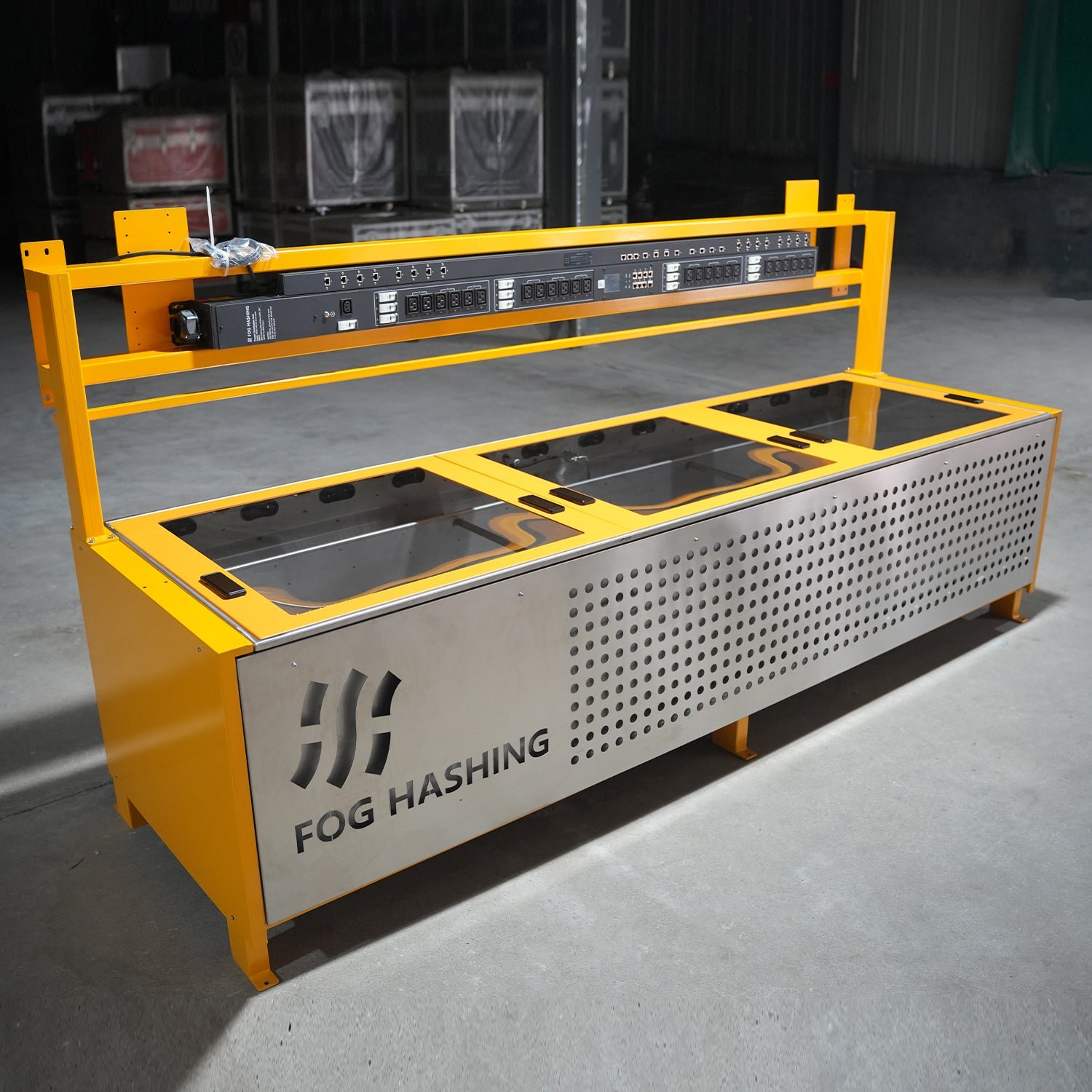

Hashzbera KM48 240kW Immersion cooling system

KM48 Immersion cooling System (240kw）

Immersion Cooling systme KM48 is a groundbreaking solution for cryptocurrency mining, meticulously engineered for large-scale mining farm deployments. This cutting-edge product accommodates 48pcs Antminers or 60pcs Whatsminers, ensuring optimal performance while maintaining equipment stability and security. By leveraging state-of-the-art immersion cooling technology, the KM48 effectively reduces device temperatures, prolongs hardware lifespan, and significantly cuts down on noise and maintenance costs.

Key Features

• Superior Cooling Efficiency: Utilizes advanced immersion cooling technology to maintain devices at peak operational temperatures.
• Versatile Compatibility: Supports a wide range of mining machine models, including Antminers and Whatsminers.
• Energy Efficient: Designed to minimize energy consumption and reduce carbon footprint.
• Ultra-Quiet Operation: Fanless design dramatically lowers operational noise.
• Easy Maintenance: Modular design facilitates straightforward installation and upkeep.
• Environmentally Friendly: Contributes to reduced carbon emissions, promoting sustainability.

Professional Parameter Of Tank

Parameter Name	Details
Machine Capacity	Supports 48 Antminers or 60 Whatsminers
Cooling tanks size	2486 *746 * 530mm *2
Input voltage	3-phase 350-480V 50/60Hz
Output Voltage	Single-phase 200-277V 50/60Hz
Ambient Temp	-25°C ~ 55°C
G.W	1100kg
Max Inlet/Outlet Temp	45/65°C

Professional Parameter Of Dry Cooler

Parameter Name	Details
Capacity	240kw
Dry Cooler size	2486*2274*2300
Input voltage	3-phase 350-480V 50/60Hz
Pipe Diameter	DN65
Air Volume(m³/h）	38299
Noise	65dB(A) (@25°C,16m)
Cooling Capacity	240kW@35°C

After-Sales Service Description

1. Installation Support

We provide remote video assistance to help you with the installation process. Our engineers will guide you through system debugging and operational testing to ensure everything functions correctly.

2. Warranty Information

• Warranty Duration: The liquid cooling system includes a 1-year warranty starting from the purchase date.
• What’s Covered:
  • We will repair or replace any failures caused by material defects or manufacturing issues within the warranty period, free of charge.
  • Exclusions: This warranty doesn’t cover damage from improper use, accidents, unauthorized repairs, or modifications.

3. After-Sales Service Process

• Step 1: Contact our after-sales service team and describe the issue while providing proof of purchase.
• Step 2: We will assess the issue and offer a suitable repair or replacement plan.

4. Maintenance Costs

• During Warranty: Repairs under warranty are free.
• After Warranty: For repairs outside the warranty, we will assess the costs based on the situation.

5. Customer Responsibilities

• Follow the instructions in the user manual to ensure proper operation of the device.
• Customers are responsible for repair costs caused by improper use.
